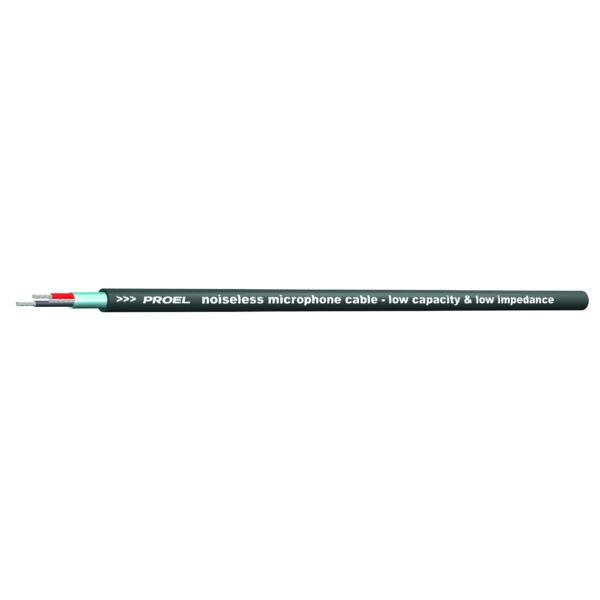

PROEL HPC85R300

Cavo coassiale bilanciato per installazione con guaina antifiamma

Cavo coassiale bilanciato per installazione con guaina esterna schermata con nastro in alluminio e resistente alla fiamma- O.F.C. (Oxygen Free Copper) dal diametro ridotto – Sezione 2 x 0.22 mm2. Colore nero. Bobina in cartone 300 m.

• Application fields: Patch-bay connections / Multieffect connections / Rack system connections
• Conductors: Tinned copper – 24 AWG 7 x 0.20 mm (0.22 mm²)
• Insulation: XLPE Ø 1.10 mm
• Shield: Aluminium foil 100%%
• Jacket: Flexible PVC 76 shore Ø 3.40 mm – Complying with CEI 20-22 II regulations
• Color: Black
• Drain wire: Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm²)
• Electrical resistance: 87 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 63 pF/m (conductor/conductor) @ 1 KHz
• 107 pF/m (conductor/shield) @ 1 KHz
• Nominal impedance: 80 +-3 Ohm
• Attenuation:
• 1 MHz = 2.10 dB/100 m
• 3 MHz = 3.60 dB/100 m
• 6 MHz = 5.00 dB/100 m
• 8 MHz = 5.80 dB/100 m
• 10 MHz = 6.50 dB/100 m
• Velocity of propagation: 66 %
• Operating temperature: -20°C / +80°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 19 Kg/Km
• Minumum bending radius: 25 mm
• Packaging:
• 300 m carton reel (HPC85R300)
