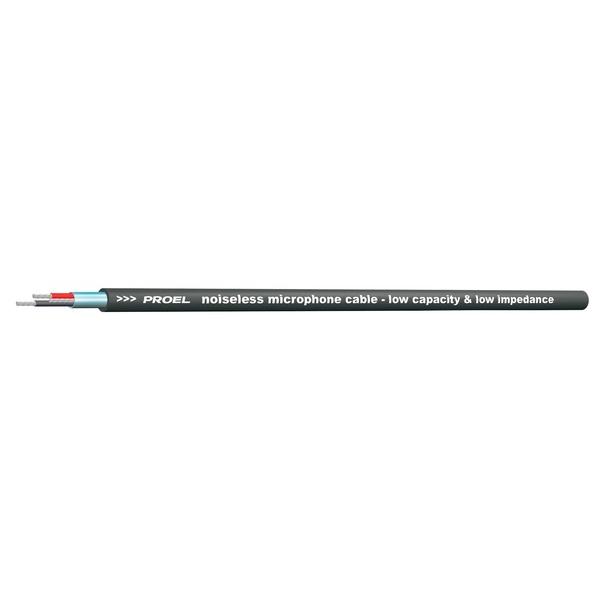

PROEL HPC90

Cavo bilanciato digitale AES/EBU per installazione

Cavo bilanciato digitale AES/EBU per installazione con guaina esterna schermata resistente alla fiamma – O.F.C. (Oxygen Free Copper) dal diametro ridotto. Sezione 2 x 0,22 mm². Colore nero.

• Application fields: Patch connections / gooseneck microphones / Home recording connections / Rack and console connections
• Conductors: Bare copper – 24 AWG = 28 x 0,10 mm (0.22 mm²)
• Insulation: PE Ø 1.20 mm
• Shield: Aluminium foil 100%%
• Jacket: Flame resistant PVC 70 shore Ø 3.00 mm – Complying with CEI 20-22 II regulations
• Color: Black
• Drain wire: Tinned copper 25 AWG = 7 x 0.18 mm (0.18 mm²)
• Electrical resistance: 87 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 37 pF/m (conductor/conductor) @ 1 KHz
• 57 pF/m (conductor/shield) @ 1 KHz
• Nominal impedance: 110 Ohm
• Velocity of propagation: 80 %
• Operating temperature: -20°C / +70°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 10 Kg/Km
• Minumum bending radius: 20 x cable secion radius
• Packaging:
• 100 m carton reel
• 300 m carton reel (HPC90R300)
