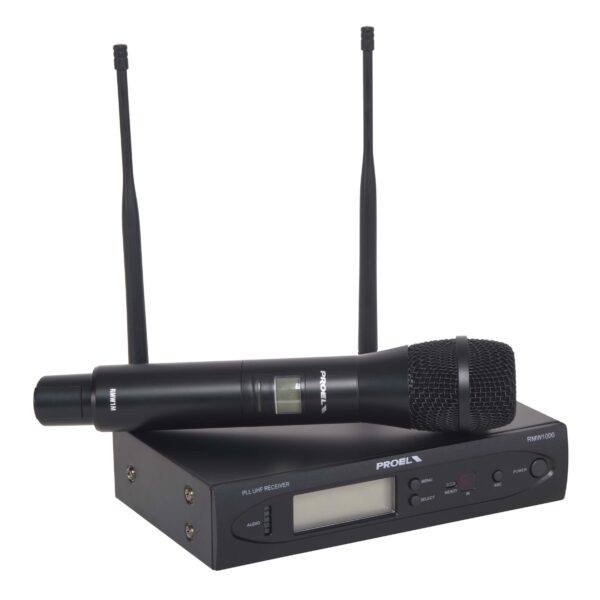

PROEL RMW1000M

PLL UHF Wireless Microphone System

• Available requency ranges:551 – 581 MHz.
• 50 meter / 160 feet range
• 50 Hz – 15 KHz frequency response
• -105 dB signal / noise ratio
• 121 selectable channels
• True Diversity antenna
• Up to 6 systems usable in the same location
• Automatic channel scan
• IR sync
• ABS carrying and storage case

RECEIVER
Receiver type: PLL synthesized
Frequency range: UHF
Frequency stability: 0,01%
Modulation Method: FM ( 3 )
Audio Frequency response: 50 Hz – 15 Khz
Thd: < 0,8%
Dynamic range: ? 100 dB
Sensitivity: -105 dB for 12dB SINAD
Output level: -13 dBv Balanced -2dBv, unbalanced ¼ jack
Power supply: Dc 12-18 Volt 150 mA
Dimension: 197( L) x 134(D) x 42(H) mm
Weight: 0.820 Kg
TRANSMITTER
Transmitter type: PLL synthesized
Frequency range: UHF
Frequency stability: 0,01%
Modulation Method: FM ( 3 )
Audio Frequency response: 50 Hz – 15 Khz
Thd: < 1%
Dynamic range: ? 100 dB
S/N ratio: ? 90 dB
RF output power: 10 mW
Current drain: 160 mA
Tone pilot frequency: 30 ~ 33 Khz
Mic capsule: Dynamic
Battery: 2 x 1.5 Volt “AA” type
Autonomy: 8 hours
Dimension:  35(D) x 250 (H) mm
Weight: 0.290 Kg
