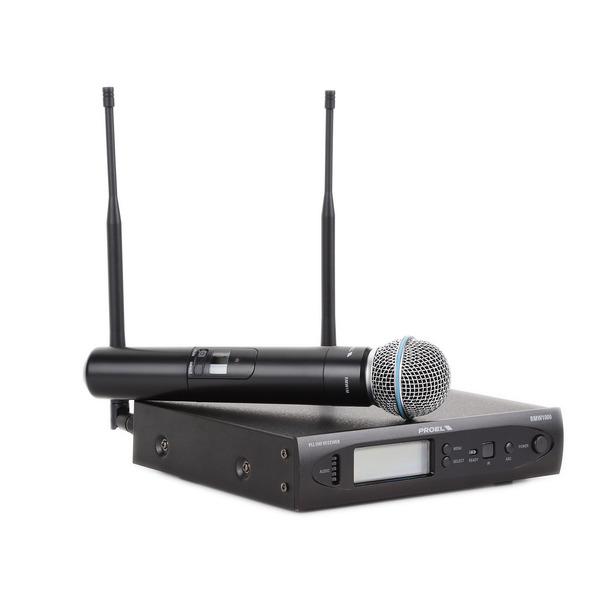

PROEL RMW1000MA

RADIO MIC UHF PLL IR SYNC HAND HELD 606

• Available requency ranges: 606 – 630 MHz.
• 50 meter / 160 feet range
• 50 Hz – 15 KHz frequency response
• -105 dB signal / noise ratio
• 99 selectable channels
• Diversity antenna
• Up to 5 systems usable in the same location
• Automatic channel scan
• IR sync
• ABS carrying and storage case

RECEIVER
Receiver type: PLL synthesized
Frequency range: UHF
Frequency stability: 0,01%
Modulation Method: FM ( 3 )
Audio Frequency response: 50 Hz – 15 Khz
Thd: < 0,8%
Dynamic range: ? 100 dB
Sensitivity: -105 dB for 12dB SINAD
Output level: -13 dBv Balanced -2dBv, unbalanced ¼ jack
Power supply: Dc 12-18 Volt 150 mA
Dimension: 197( L) x 134(D) x 42(H) mm
Weight: 0.820 Kg
TRANSMITTER
Transmitter type: PLL synthesized
Frequency range: UHF
Frequency stability: 0,01%
Modulation Method: FM ( 3 )
Audio Frequency response: 50 Hz – 15 Khz
Thd: < 1%
Dynamic range: ? 100 dB
S/N ratio: ? 90 dB
RF output power: 10 mW
Current drain: 160 mA
Tone pilot frequency: 30 ~ 33 Khz
Microphone Condenser: Headset
Battery: 2 x 1.5 Volt “AA” type
Autonomy: 8 hours
Dimension: 64 ( L) x 19(D) x 108 (H) mm
Weight: 0.10 Kg
