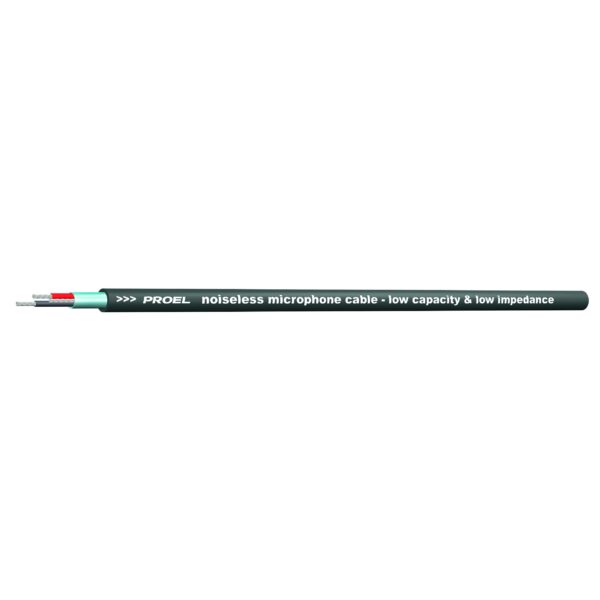

PROEL STAGE HPC80R500

Cavo bilanciato per installazione. Colore nero.

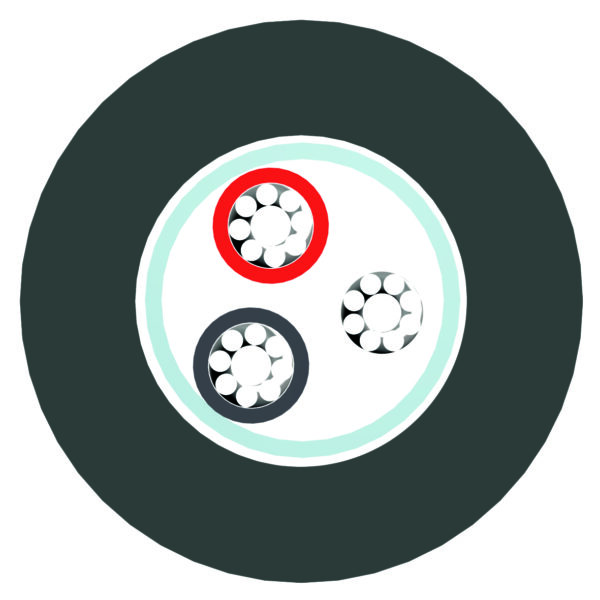

Cavo bilanciato per installazione con guaina esterna schermata con nastro in alluminio – O.F.C. (Oxygen Free Copper) dal diametro ridotto – Sezione 2 x 0.22 mm². Colore nero.

• Application fields: Patch-bay connections / Multieffect connections / Rack system connections
• Conductors: Tinned copper – 24 AWG 7 x 0.20 mm (0.22 mm²)
• Insulation: PE Ø 1.05 mm
• Shield: Aluminium foil 100%%
• Jacket: Flexible PVC 80 shore Ø 4.00 mm
• Color: Black – HPC80R500
• Drain wire: Tinned copper 24 AWG 7 x 0.20 mm (0.22 mm²)
• Electrical resistance: 87 Ohm/Km (conductor) @ 20°C
• Electrical capacitance:
• 63 pF/m (conductor/conductor) @ 1 KHz
• 107 pF/m (conductor/shield) @ 1 KHz
• Nominal impedance: 80 +-3 Ohm
• Attenuation:
• 1 MHz = 2.10 dB/100 m
• 3 MHz = 3.60 dB/100 m
• 6 MHz = 5.00 dB/100 m
• 8 MHz = 5.80 dB/100 m
• 10 MHz = 6.50 dB/100 m
• Velocity of propagation: 66 %
• Operating temperature: -20°C / +80°C
• Working tension:
• < 50 V AC
• < 75 V DC
• Weight: 20 Kg/Km
• Minumum bending radius: 25 mm
• Packaging:
• 100 m carton reel (HPC80)
• 300 m carton reel (HPC80R300
• 500 m carton reel (HPC80R500
