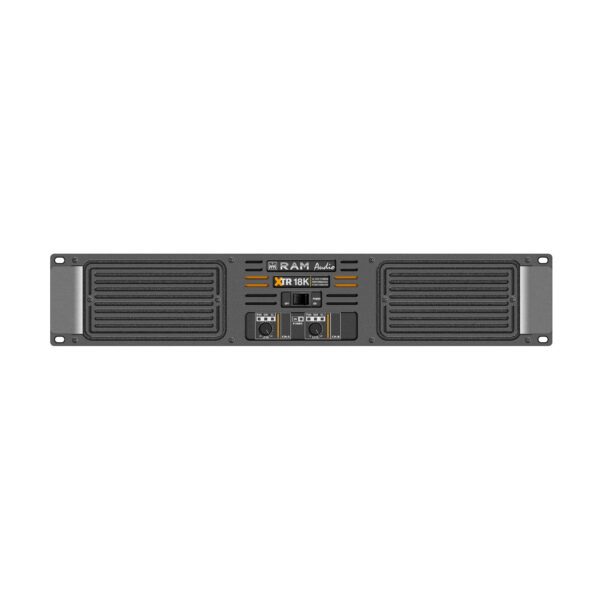

Ram Audio XTR-18K – PA Amplifier 2 x 9000 W 4 Ohm
The RAM Audio XTR Series has been designed with the aim of offering the proper and more reliable amp to users of very big subwoofers with no concessions. Their output performances (270V/70A) are more than needed to push your subs as far as their maximum limits accept. These 2-channels devices are based on the field proven Quanta PulseTM Technology with an oversized dual high capacity regulated power supply with PFC to deliver their full performances independently of mains status, and an also oversized high efficiency audio power stage, forced front to back cooling through a component-free path with removable front panel dust filters, improved rugged mechanical design with even weight distribution. In short… with XTR amplifiers you make sure that you will get the maximum output performances to your more powerful subwoofers without compromises!
- Dual PFC QuantaPulse™ Regulated SMPS
- Max. Output: 270V / 70A peak
- Dedicated design for powerful subwoofers
- 32/38/44 dB selectable Gain
- RAM Audio Power Management System
- Hi Efficiency, Heavy Duty Audio Power section for extreme use
- Removable front panel dust filters
- Efficient front to back cooling
- Industry standard Neutrik® XLR and Speakon® connectors
Tipo di prodotto | Finali di potenza |
Tipo | Finali di potenza PA |
Potenza di uscita (1 kHz @ 4 Ohm) | 2 x 9000 W |
Potenza di uscita (1 kHz @ 8 Ohm) | 2 x 4500 W |
Potenza di uscita (1 kHz @ 8 Ohm, modalità bridge) | 18000 W |
Risposta in frequenza | 20 – 20000 Hz |
Fattore di distorsione armonica (THD) | <0,05% |
Rapporto segnale/rumore | 118 dB |
Fattore di smorzamento | >500 |
Diafonia | >80 dB |
Amplificazione (guadagno): | 32/38/44 dB |
Sensibilità di ingresso: | 4,7/2,4/1,2 V |
Protezioni | Carichi aperti o non corrispondenti, Comando di silenziatore all’accensione, Cortocircuito, DC, FCM™, ICL (Intelligent Clip Limiting), PMS (Power Management System), RF (segnale radio), Soft-Start, Sovraccarico dell’alimentatore, Sovratensione, SSP, Surriscaldamento, Transitori di accensione/spegnimento |
Elementi di comando | 2 x volume, Interruttore Dual Link, Interruttore on/off illuminato |
Indicatori | ICL (Intelligent Clip Limiting), PMS (Power Management System), Segnale |
Ingressi di linea | 2 |
Connessioni di ingresso di linea | 2 x XLR Signal Input |
Uscite di linea | 2 |
Connessioni di uscita di linea | 2 x XLR Signal Link |
Uscite altoparlante | 2 |
Raffreddamento | Ventola |
Tensione di esercizio | 170 V AC – 265 V AC, 50 – 60 Hz |
Larghezza | 483 mm |
Altezza | 89 mm |
Profondità | 460 mm |
Peso | 12 kg |
