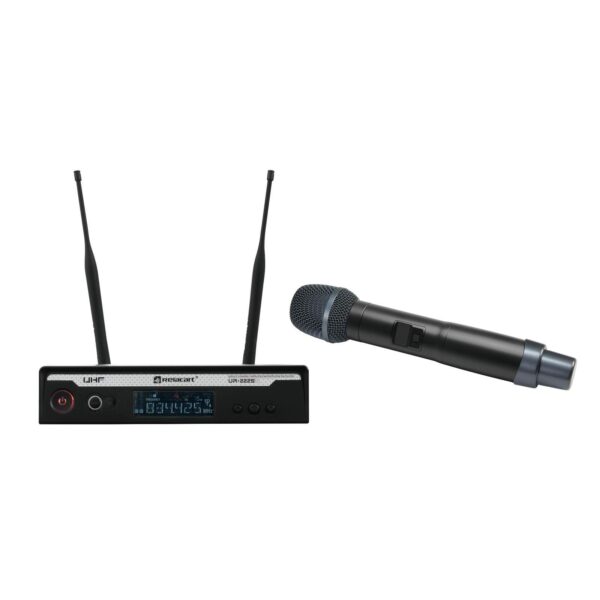

RELACART Set UR-222S Condensator Handmic

13055205 RELACART UR-222S 1-Channel UHF Receiver

Multifrequency wireless receiver with true diversity
• Multifrequency wireless receiver with high-quality true diversity reception
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Parallel operation of up to 9 systems is possible without any interference
• Pilot tone technology (PLL) for interference-free reception
• Operation range with line of sight approx. 80 meters
• Automatic frequency scan (AFS) finds interface-free channels
• Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
• LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
• XLR and 6.3 mm jack output
• 2 detachable BNC antennas allow for use with the R-14D antenna divider
• Matching transmitters optionally available: hand-held microphone (UH-222S), pocket transmitter (UT-200), boundary microphone (UB-200)
• Delivery includes practical transport bag with jack cable and power unit
• Durable metal housing
• 483 mm rack installation possible with supplied mounting brackets
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

13055208 RELACART UH-222C Microphone

Hand-held microphone with PLL multifrequency transmitter
• Condenser hand-held microphone with UHF pilot tone technology (PLL)
• Ergonomic aluminum alloy housing, applicable for touring
• Matches receiver UR-260D
• 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
• 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
• Infrared interface for easy and error-free synchronization with the receiver via infrared signal
• Operation range approx. 80 meters
• OLED display for battery status and frequency
• Mute function
• RF output power Hi/Low adjustable
• Directly compatible with Shureâ??s SM58 capsule
• Operation via 2 x 1.5 V battery (type AA), not included
• License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

13055205 RELACART UR-222S 1-Channel UHF Receiver

System:   True diversity, 1 channel
Carrier frequency:   UHF 823-832 MHz and 863-865 MHz
Receiving frequencies:   90
   10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:   11 MHz
Deviation:   Â±45 kHz
Frequency stability:   Â±0.0005 %
T.H.D.:   <0.7 % at 1 kHz
S/N ratio:   >105 dB
Modulation method:   FM
Coverage:   80 m (with line-of-sight)
Frequency range:   45-18000 Hz
Sensitivity:   5 dBµV (S/N >60 dB at 25 deviation)
Audio output:   XLR, bal.
   6.3 mm jack, unbal.
Antenna inputs:   2 x BNC (supply 8 V/150 mA)
Power supply:   12 V DC, 500 mA
   via supplied power unit connected to 100-240 V AC, 50/60 Hz
Power consumption:   12 W
Dimensions:   205 x 43 x 220 mm
   Rack installation with 1 U
   with supplied mounting brackets
Weight:   1.2 kg

13055208 RELACART UH-222C Microphone

Type:   Condenser
Directivity pattern:   Cardioid
Carrier frequency:   UHF 823-832 and 863-865
Receiving frequencies:   90
   10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:   11 MHz
Deviation:   Â±45 kHz
Modulation:   FM
Coverage:   80 m (with line-of-sight)
Power supply:   2 x 1.5 V battery (type AA)
Current consumption:   approx. 120 mA
Battery life:   approx. 8 hours
Dimensions:   52 x 255 mm
Weight:   235 g
