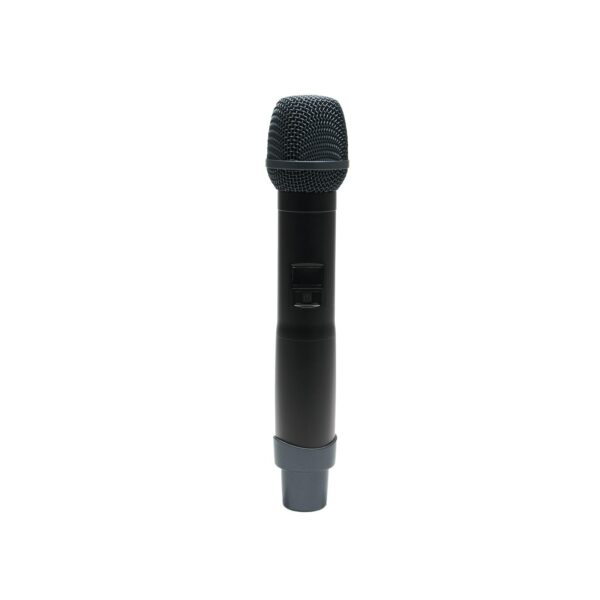

Hand-held microphone with PLL multifrequency transmitter
- Dynamic hand-held microphone with UHF pilot tone technology (PLL)
- Ergonomic aluminum alloy housing, applicable for touring
- Matches receiver UR-222S
- 2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
- 10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
- Infrared interface for easy and error-free synchronization with the receiver via infrared signal
- Operation range approx. 80 meters
- OLED display for battery status and frequency
- Mute function
- RF output power Hi/Low adjustable
- Directly compatible with Shures SM58 capsule
- Operation via 2 x 1.5 V battery (type AA), not included
- License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
Type: | Dynamic |
Directivity pattern: | Cardioid |
Carrier frequency: | UHF 823-832 MHz and 863-865 MHz |
Transmitting frequencies: | 90 |
10 frequency banks with up to 10 preset frequencies each | |
Switching bandwidth: | 11 MHz |
Deviation: | ±45 kHz |
Modulation: | FM |
Coverage: | 80 m (with line-of-sight) |
Power supply: | 2 x 1.5 V battery (type AA) |
Current consumption: | approx. 120 mA |
Battery life: | approx. 8 hours |
Dimensions: | 52 x 255 mm |
Weight: | 235 g |
