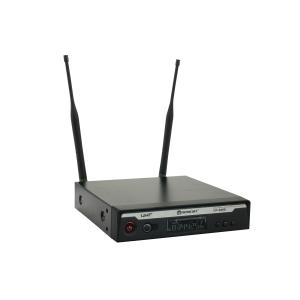

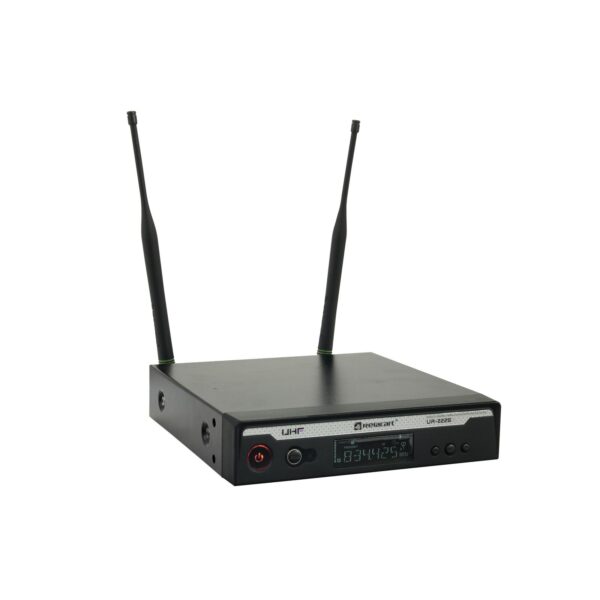

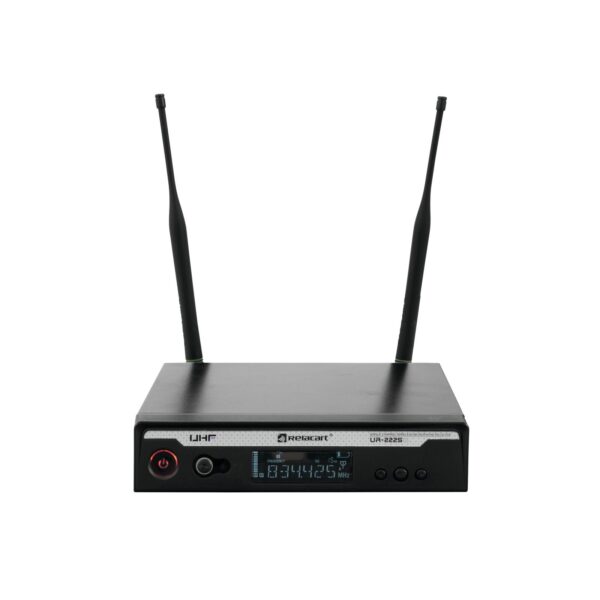

RELACART UR-222S 1-Channel UHF Receiver

Name: RELACART UR-222S 1-Channel UHF Receiver
SKU: 13055205
Price: 199.00 EUR
Availability: InStock

199,00 €

SPEDIZIONE GRATUITA

per ordini superiori a 200 €

Disponibile

VUOI PAGARE A RATE?
Contatta Paco 329 2237447

EAN: 4026397537024 COD: 13055205 Categoria: Radiomicrofoni

Multifrequency wireless receiver with high-quality true diversity reception
2 license-free frequency ranges: 823-832 MHz (Duplex Gap) and 863-865 MHz
10 groups with 90 fixed frequencies within 11 MHz switching bandwidth
Parallel operation of up to 9 systems is possible without any interference
Pilot tone technology (PLL) for interference-free reception
Operation range with line of sight approx. 80 meters
Automatic frequency scan (AFS) finds interface-free channels
Infrared interface for easy and error-free channel transfer to transmitters via infrared signal
LCD for battery status of the transmitter, antenna A/B, RF reception level, AF audio level and frequency
XLR and 6.3 mm jack output
2 detachable BNC antennas allow for use with the R-14D antenna divider
Matching transmitters optionally available: hand-held microphone (UH-222S), pocket transmitter (UT-200), boundary microphone (UB-200)

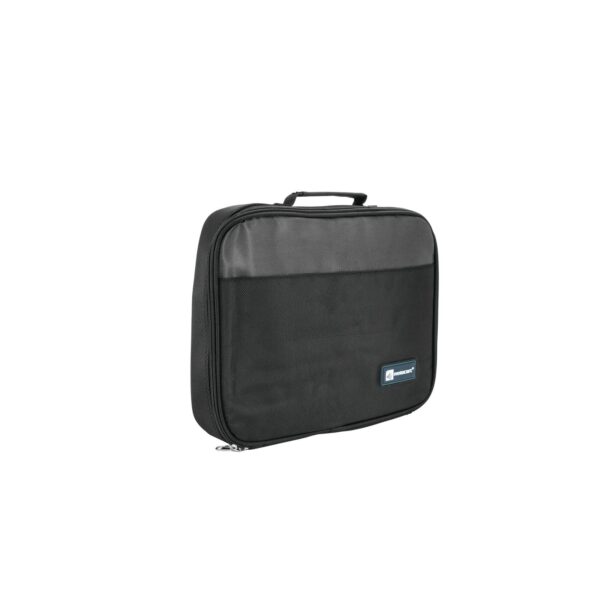

Delivery includes practical transport bag with jack cable and power unit
Durable metal housing
483 mm rack installation possible with supplied mounting brackets
License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)

System:	True diversity, 1 channel
Carrier frequency:	UHF 823-832 MHz and 863-865 MHz
Receiving frequencies:	90
	10 frequency banks with up to 10 preset frequencies each
Switching bandwidth:	11 MHz
Deviation:	±45 kHz
Frequency stability:	±0.0005 %
T.H.D.:	<0.7 % at 1 kHz
S/N ratio:	>105 dB
Modulation method:	FM
Coverage:	80 m (with line-of-sight)
Frequency range:	45-18000 Hz
Sensitivity:	5 dBµV (S/N >60 dB at 25 deviation)
Audio output:	XLR, bal.
	6.3 mm jack, unbal.
Antenna inputs:	2 x BNC (supply 8 V/150 mA)
Power supply:	12 V DC, 500 mA
	via supplied power unit connected to 100-240 V AC, 50/60 Hz
Power consumption:	12 W
Dimensions:	205 x 43 x 220 mm
	Rack installation with 1 U
	with supplied mounting brackets
Weight:	1.2 kg
