RIGGATEC 400200073

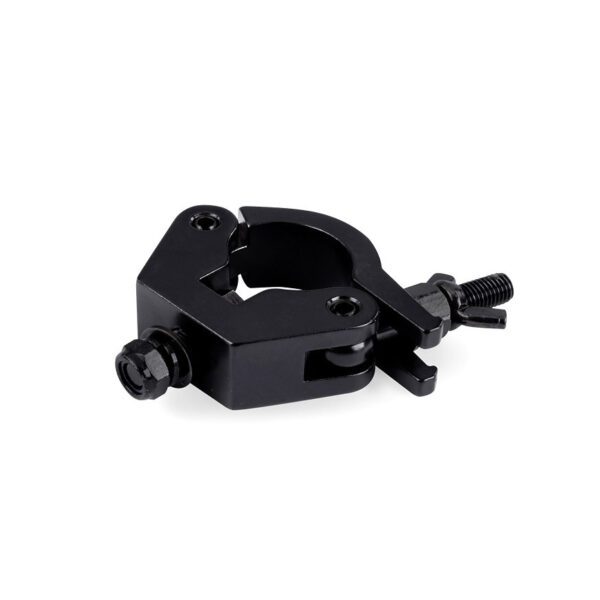

RIGGATEC 400200073 – Halfcoupler Slim black up to 750 kg MKII (48 – 51 mm)

• For 48 – 51 mm pipe diameter
• Resilient up to 750 kg (tensile load)
• TUV approved (certificate can be sent on request)
• Clamp width: 30 mm
• Maximum shearing load: 100 kg
• Material: Aluminum 6061 T6, black
• Incl. device screw M12 black, retaining ring, grommet and wing nut
• Lock screw M8 zinc coated with grommet and wing nut
• Outer dimensions: 113 x 30 x 81 mm (length x width x height without device screw)
• Weight: 0.48 kg
