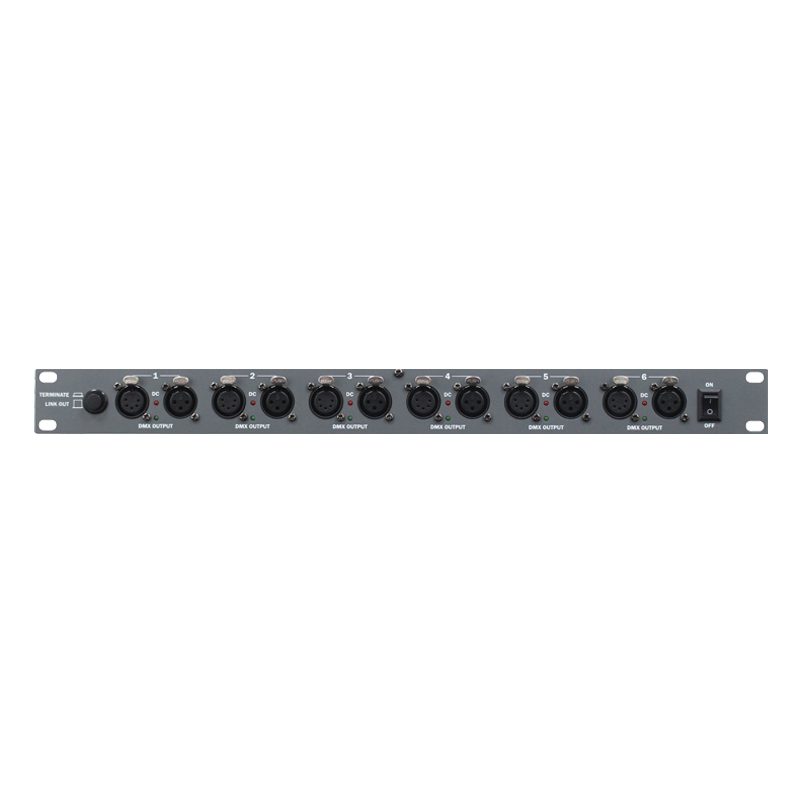

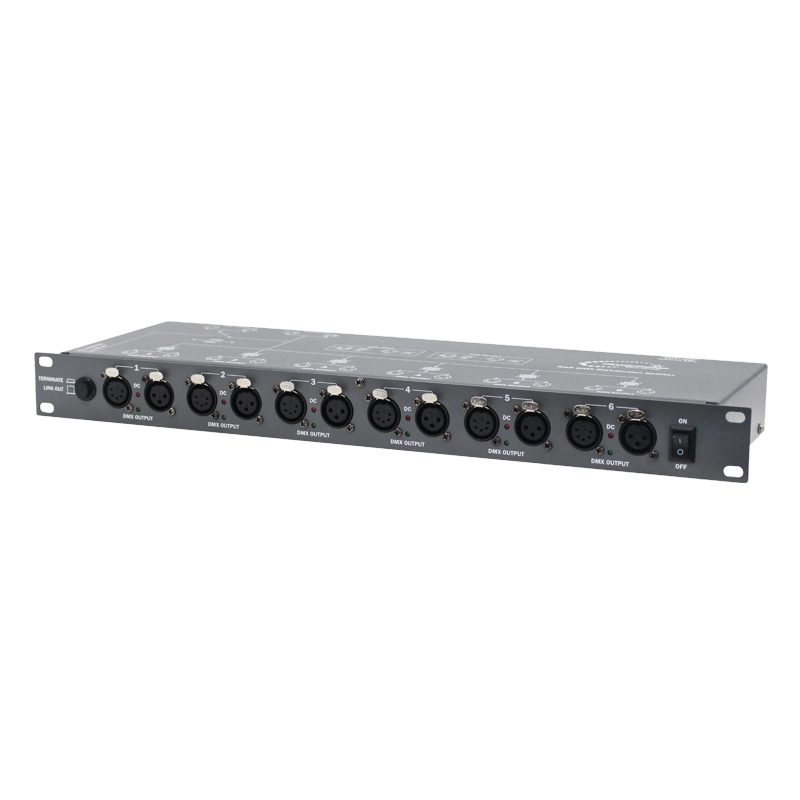

RS 6 Rackmount DMX Distribution Splitter

A six way DMX booster/distributor featuring one input, link output and six outputs each electronically isolated from both each other and from the input. The RS 6 can be used to simplify DMX cabling allowing lighting systems to be cabled in a star format while working to prevent data errors. Each of the six outputs features an independent driver coupled with DC and DMX indicator LEDs. Housed within a 1U 19”, rack mount chassis the RS6 is ideally suited to professional applications.

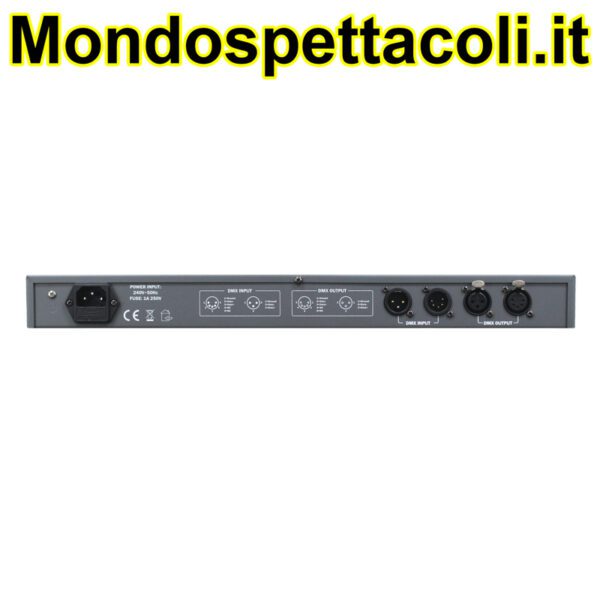

6 x 3Pin and 5Pin XLR outputs, Link output with switchable termination facility, 1U, 19” rack mount chassis, IEC power input

Power supply: 240V, 50Hz, Fuse: 1A 250V, Dimensions: 44 x 483 x 145mm, Weight: 2.8kg

Manuale in PDF da scaricare
