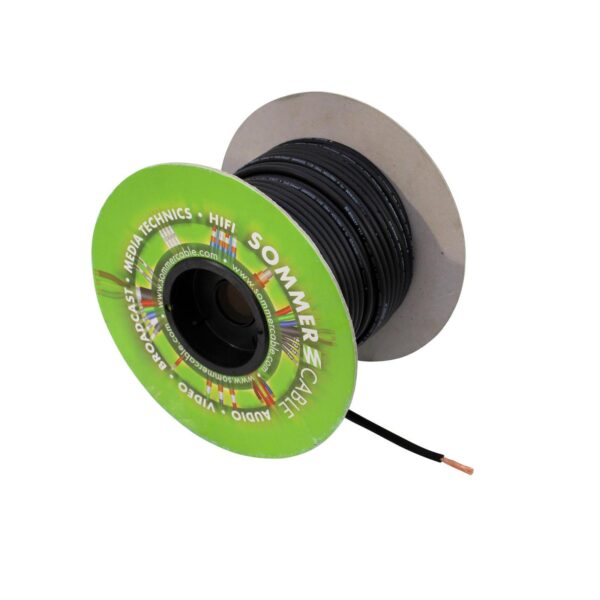

SOMMER CABLE DMX cable 2×0.34 100m bk BINARY 234
189,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
To swing with your girlfriend…
like Tarzan in the jungle. With this cable you can do just that: It can take a lot of tugging, bending, and rough wear and tear. This is important when it is installed on light traverses with sharp edges.
The BINARY 234 is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX. It has 100 % shielding made of an aluminum-vaporized fleece and copper spiral shielding and provides very good protection against electrical and magnetic interference.
This cable ensures faultless data transfer over distances of up to 100 meters. With the BINARY 234 you are on the safe side.
The PUR-version is longitudinal water-tight up to a water pressure of 20 bar, i.e. water will not penetrate.
like Tarzan in the jungle. With this cable you can do just that: It can take a lot of tugging, bending, and rough wear and tear. This is important when it is installed on light traverses with sharp edges.
The BINARY 234 is an outstanding cable for the transmission of digital signals, format data 110 Ohm AES/EBU and DMX. It has 100 % shielding made of an aluminum-vaporized fleece and copper spiral shielding and provides very good protection against electrical and magnetic interference.
This cable ensures faultless data transfer over distances of up to 100 meters. With the BINARY 234 you are on the safe side.
The PUR-version is longitudinal water-tight up to a water pressure of 20 bar, i.e. water will not penetrate.
High-quality data cable
- AES/EBU- and DMX-conformant, highly flexible
- Very good shielding through the use of copper spiral shielding and a fleece vaporized with aluminum
- Extremely robust with an especially strong jacket
- Only a little more expensive than a standard microphone cable
- For networking of scanners, lighting units, digital mixing boards, etc.
- For indoor and outdoor installation
- For connection of digital audio amplifiers, DAT-recorders, etc.
- Made in Europe

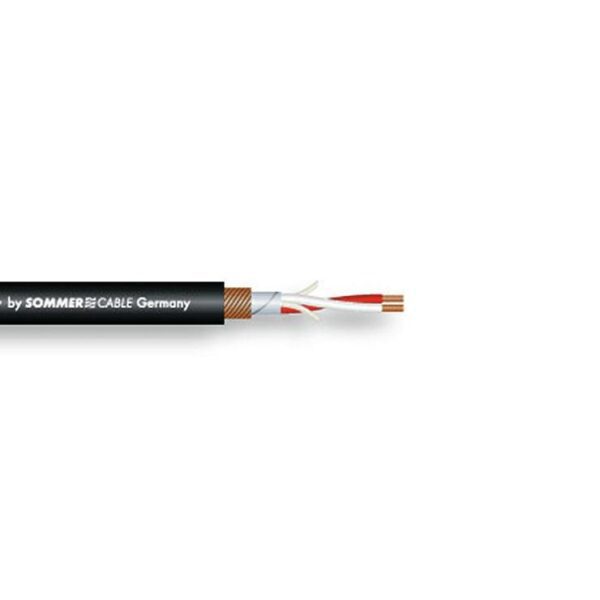

| Construction: | (2LI2YS 0.34 mm²) (ST)CY |
| Jacket: | PVC 7.0 mm |
| FRNC: 5.6 mm | |
| No. of inner conductors: | 2 x 0.34 mm² (AWG 22) |
| Copper strand per conductor: | 19 x 0.15 mm |
| Conductor insulation: | Foam/skin-PE 1.50 mm |
| Shielding: | copper spiral shielding + aluminum steamed fleece |
| Shielding factor: | 100 % |
| Temperature range: | -25° C to +70° C |
| Fire load per m: | 0.17 kWh (520-0051 F:0.23 kWh) |
| Weight per 1 m: | 50 g |
| Packaging: | 100 m roll |
| Electrical data | |
| Capac. cond./cond. per 1 m: | <65 pF |
| Capac. cond./shield. per 1 m: | >115 pF |
| Cond. resistance per 1 km: | 53 ohms |
| Insulation resist. per 1 km >1 Gohms | |
| Surge impedance: | 110 ohms |
| Cable length: | 100 m |
| Color: | Black |
| Plug A: | 1 x No connector/cable only |
| Plug B: | 1 x No connector/cable only |
| Peso | 50,000 kg |
|---|---|
| Dimensioni | 0,1550 × 0,2300 × 0,2300 cm |
| Codice Ean | 4049371002349 |
