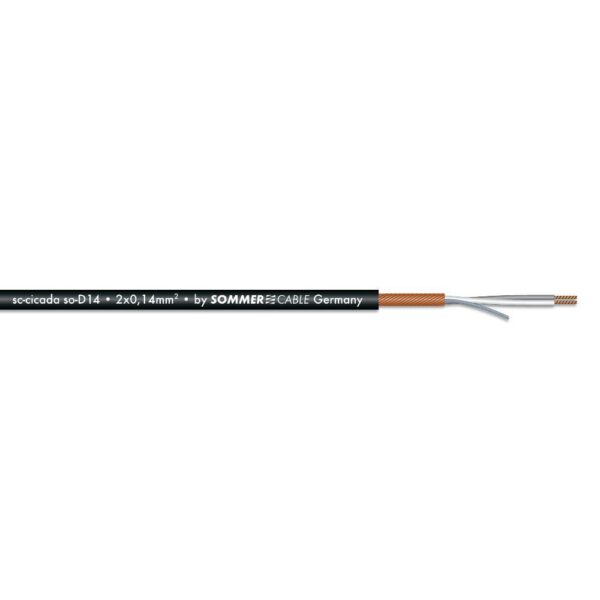

SOMMER CABLE Microphone cable 2×0.14 100m bk CICADA
149,00 €
 |
SPEDIZIONE GRATUITA per ordini superiori a 200 € |
Disponibile
| VUOI PAGARE A RATE? Contatta Paco 329 2237447 |
This tiny twist…
with its 2.6 mm diameter fits in wherever there is little room. We originally developed the SC-CICADA SO-D14 as a high quality cable for the inside wiring of racks and audio equipment, but being tested extensively by various manufacturers of microphones they very quickly relised the excellent technical and electrical values of the cable. In the meantime the SC-CICADA can be found on many clip and ear microphones, head sets, and speaker units.
Especially appreciated is the extreme flexibility, the dense spiral shielding, and the pre-twisted and tin-plated drain wire on the SC-CICADA SO-D14, which gives the cable additional protection against bending and tearing.
If you are a manufacturer of high quality audio components, then wire your units with this cable! The low noise and the shielding will amaze you!
with its 2.6 mm diameter fits in wherever there is little room. We originally developed the SC-CICADA SO-D14 as a high quality cable for the inside wiring of racks and audio equipment, but being tested extensively by various manufacturers of microphones they very quickly relised the excellent technical and electrical values of the cable. In the meantime the SC-CICADA can be found on many clip and ear microphones, head sets, and speaker units.
Especially appreciated is the extreme flexibility, the dense spiral shielding, and the pre-twisted and tin-plated drain wire on the SC-CICADA SO-D14, which gives the cable additional protection against bending and tearing.
If you are a manufacturer of high quality audio components, then wire your units with this cable! The low noise and the shielding will amaze you!
Available with a PUR-jacket (resistant to notching and cold temperatures!
High quality cable
- Highly flexible due to the fine copper strand construction
- Easy to work with due to the additional filler strand (0.22 mm²)
- Outstanding shielding due to dense spiral shielding, 95 % optically opaque
- Longetivity and resistant to notching due to the tough PUR-jacket
- Application:
- Inside wiring of mixing boards, racks, and other audio components
- Flexible cable for clip microphones, ear phones, speaker units, etc.
- Construction of adapter cables
- Made in Europe
| Construction: | (2LI2Y0,14 mm²) DY |
| Jacket, diameter: | PUR Master Blend 2,6 mm |
| AWG: | 26 |
| No. of inner conductors: | 2 x 0,14 mm² |
| Copper strand per conductor: | 18 x 0,10 mm |
| Cond. insulationCond. insulation: | PE 0,90 mm |
| Shielding: | copper spiral shielding + filler strand, tin-plated (0.22 mm2) |
| Shielding factor: | 95 % |
| Temperature range: | min. -30° C |
| Temperature range: | max. 70° C |
| Fire load per m: | 0,08 kWh |
| Weight per 1 m: | 13 g |
| Packaging: | 100 m roll |
| Colour: | black |
| ELECTRICAL DATA: | |
| Capac. cond./cond. per 1 m: | 65 pF |
| Capac. cond./shield. per 1 m: | 120 pF |
| Cond. resistance per 1 km: | <148 ohms |
| Shield. resistance per 1 km: | 30 ohms |
| Insulation resist. per 1 km: | >1 Gohms |
| Cable length: | 100 m |
| Color: | Black |
| Plug A: | 1 x No connector/cable only |
| Plug B: | 1 x No connector/cable only |
| Peso | 15,000 kg |
|---|---|
| Dimensioni | 0,1050 × 0,2000 × 0,2000 cm |
| Codice Ean | 4049371002066 |
