The shrinking violet…
among the microphone cables is the new AES/EBU-capable SC-MICRO-STAGE.
Though it may look somewhat inconspicuous at first sight, it splendidly meets the most essential requirements of contemporary live and studio technology.
It has a cold-flexible, soft PVC jacket, a low capacitance and is very easy to handle.
The compact cable diameter of 5,80 mm is ideal for using stereo jack connectors and XLR connectors with a small cable passage like they are still very popular e.g. overseas or on the US market.
When used as a patch or MIDI cable, it will occupy only very little space in your patchbay or in the home studio.
Due to its tight, concentric litz stranding and the foamed Skin PE wire insulation, the SC-MICRO-STAGE can easily transmit analogue and digital signals 110 ohms over distances greater than 100 metres.
among the microphone cables is the new AES/EBU-capable SC-MICRO-STAGE.
Though it may look somewhat inconspicuous at first sight, it splendidly meets the most essential requirements of contemporary live and studio technology.
It has a cold-flexible, soft PVC jacket, a low capacitance and is very easy to handle.
The compact cable diameter of 5,80 mm is ideal for using stereo jack connectors and XLR connectors with a small cable passage like they are still very popular e.g. overseas or on the US market.
When used as a patch or MIDI cable, it will occupy only very little space in your patchbay or in the home studio.
Due to its tight, concentric litz stranding and the foamed Skin PE wire insulation, the SC-MICRO-STAGE can easily transmit analogue and digital signals 110 ohms over distances greater than 100 metres.

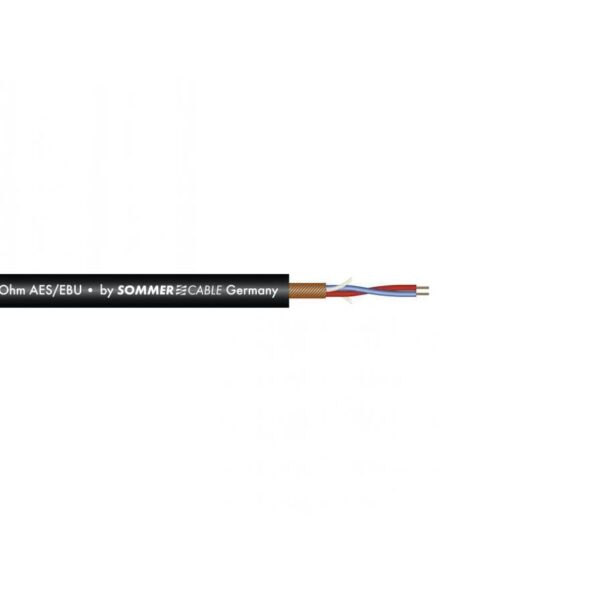

Microphone cable SC-MICRO-STAGE
- 2 x 0.14 mm²; PVC Ø 5.8 mm; black
- High transmission quality due to the usw of fine stranding
- Very rugged owing to the thick, soft PVC jacket
- Good shielding due to dence helical copper mesh screen
- High flexibility makes it easy to reel
- Application: stage and studio
- Made in Europe
Construction | (2LI2Y0,14mm²) DY |
Jacket, diameter | 5.8 mm |
No. of inner conductors | 2 x 0.14 mm² |
Copper strand per conductor | 18 x 0.10 mm |
Conductor insulation | Foam/Skin-PE 1.20 mm |
Shielding factor | 95 % |
Temperature range | min. -25° C |
Temperature range | max. 70° C |
Capac. cond./cond. per 1 m | 48 pF |
Capac. cond./shield. per 1 m | 120 pF |
Cond. resistance per 1 km | smaller 130 ohms |
Shield. resistance per 1 km | smaller 30 ohms |
Insulation resist. per 1 km | 1 Gohms |
Surge impedance: | 110 ohms |
Cable length: | 100 m |
Color: | Black |
Plug A: | 2 x No connector/cable only |
Plug B: | 2 x No connector/cable only |
