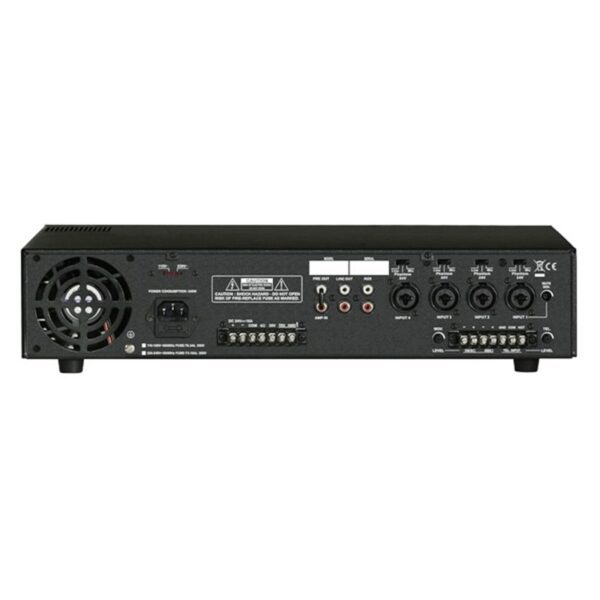

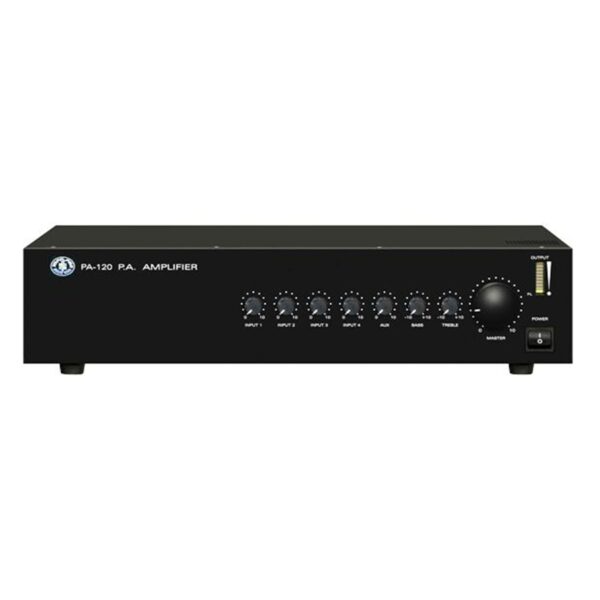

Amplificatore a 5 ingressi, 120W
- 120 W RMS / 4 OHM Output Power
- 4 Mic/Line Combo IN
- Mic/Line/Phantom Switch selector
- 1 RCA Aux IN
- 2 band EQ on Master with front panel control
RMS output | AC:120W; DC:88W |
Frequency response | 80Hz-16kHz( 3dB) |
S/N Ratio | MIC: 65dB Phantom: 65dB Line: 75dB AUX: 80dB |
Power consumption | 110-120V~/220-240V~ 50/60Hz/600W ;DC 24V: 161W |
Input/Sensitivity | Mic : -52dBV balanced Phantom : -52dBV / 24V balanced Line : -10dBV unbalanced TEL IN : -10dBV balanced Aux : -6dBV unbalanced AMP IN : 0dBV unbalanced; |
Output | COM , 4 ohm , 25V ,70V , 100V |
Controls |
4 Input volume controls; 1 Aux volume controls 4 Zone out volume controls;5 Zone out selector switch(units with”S”) 3 REC selector switch(models of recording functions) |
Dimensions(WxDxH) | 420 x 330 x 88mm |
Weight | 11.8kgs |
