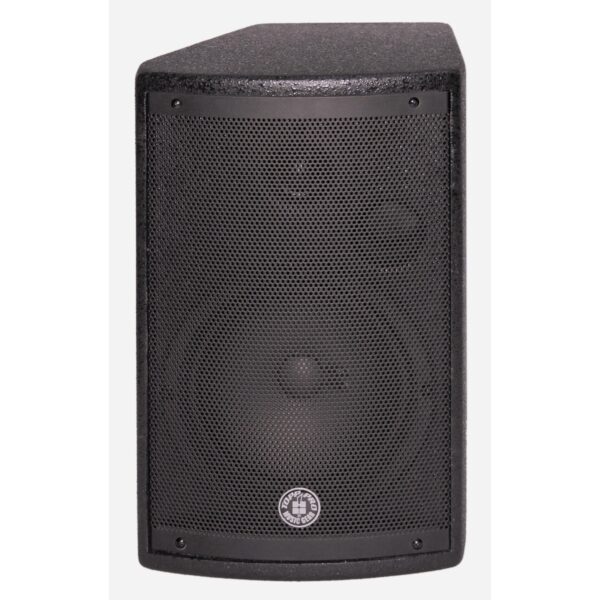

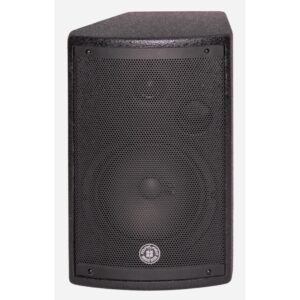

Sistema audio portatile 140W
TPS16AMUB è un sistema completo ultra-compatto ed estremamente conveniente per musicisti live, diffusione vocale ed eventi al chiuso di tipo religioso, sportivo o commerciale. I 5 ingressi disponibili nel mixer incorporato consentono di collegare una grande varietà di segnali, mentre la possibilità di raddoppiare la potenza collegando un secondo diffusore rende possibile utilizzare il sistema in molteplici applicazioni. Include un lettore multimediale con BLUETOOTH.
- POWER: 140W RMS (TPS16P connected)
- POWER: 70W RMS (stand alone)
- TRANSDUCER LOW: 6,5″ Woofer 1″ Voice Coil
- TRANSDUCER HIGH:1″ Neodymium Tweeter
System Type: | 2-Way 6.5″ Vented Active Speaker Cabinet |
Power Handling: | RMS: 140Watts / Program: 280Watts |
Frequency Response: | 75Hz-20KHz (-6dB) |
Sensitivity: | 113dB Max |
Low Frequency: | 6.5″ (165mm) woofer / 1″ Voice Coil |
High Frequency: | 1″ Neodymium Tweeter |
X-over Frequency: | 5KHz@12dB/oct |

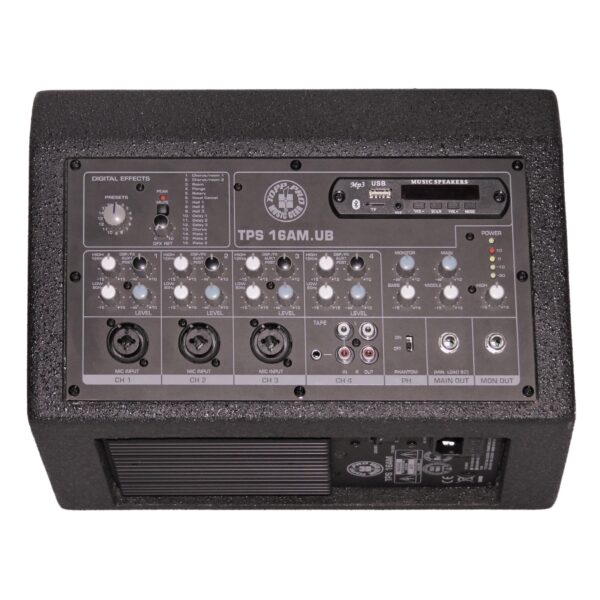

Mixer: | 2-band equalizer on input channels, 5 Input channels with individual Volume control, 3 bands Master EQ, 3 COMBO microphone Inputs with phantom power, 2 RCA Line Inputs/3.5mm jack, 2 RCA Line Outputs, Monitor output with level control, Powered output 70W (@4 ohms, min) for optional external speakers, 16-preset digital effect processor |
USB Player: | With USB & Micro SD CARD, Bluetooth |
Power Supply: | 230V – 115V @50 – 60Hz |
Amplifier: | Class D 70W x 2, one for inside speaker / one for optional external speaker |
Electronic Protections: | Thermal / overload / analog limiter |
Enclosure: | Trapezoidal painted wood cabinet. metal grille |
Fixing Point: | 4 x M4 Standard (2 x Vertical and Horizontal side) |
Dimensions (HxWxD): | 12.52″ (318mm) x 7.87″ (200mm) x 8.67″ ( 220mm) |
Net Weight: | 13.67 lbs / 6.2Kg |
