Diffusore attivo 10“ 390W
Cassa attiva in legno verniciata, Biamplificata. Amplificazione in classe D. Massimo SPL 120dB di picco. Woofer 10″ e Driver da 1″
- Program power: 170W + 25W RMS
- Peak power: 780W
- Transducer low: 10” woofer, 2” voice coil
- Transducer high: 1” driver, 1”voice coil
System Type | 2-Way Vented Cabinet |
Transducer Low | 10″ Woofer – 2″ Voice Coil |
Transducer Driver | 1” Driver – 1” Voice Coil |
Frequency Response (-6dB) | 58Hz~20KHz (-6dB) |
Horn Coverage | 50º× 50º |
Max SPL | 95dB/120dB (Max) |
Power Rating | 390W PROGRAM / 780W PEAK |
Line Input | 5dBu ±1dBu |
Input Impedance | Line 15kO input |

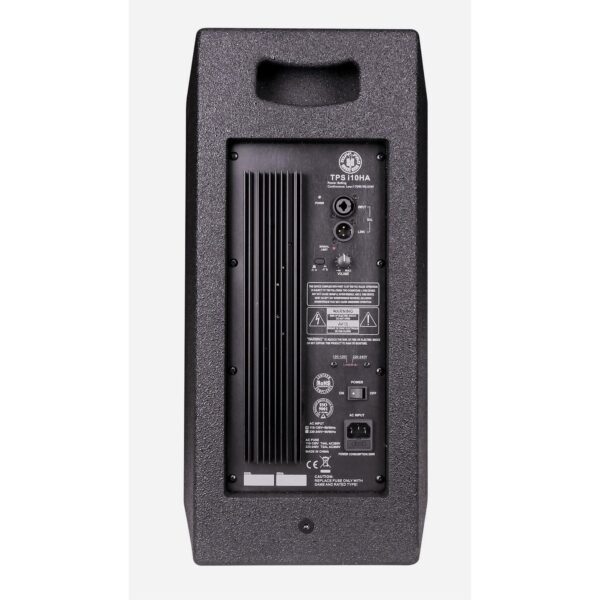

External Controls | Volume, Master switch / AC Select / Power LED / CLIP LED |
Power Supply | 110-120V~60Hz / 220-240V~50/60Hz |
Enclosure Construction | Plywood cabinet, resistant black paint, metal grille, rubber feet, two handles |
Dimensions (HxWxD) | 41.8 × 40.8 × 63.1 |
Net Weight | 18.5 |
