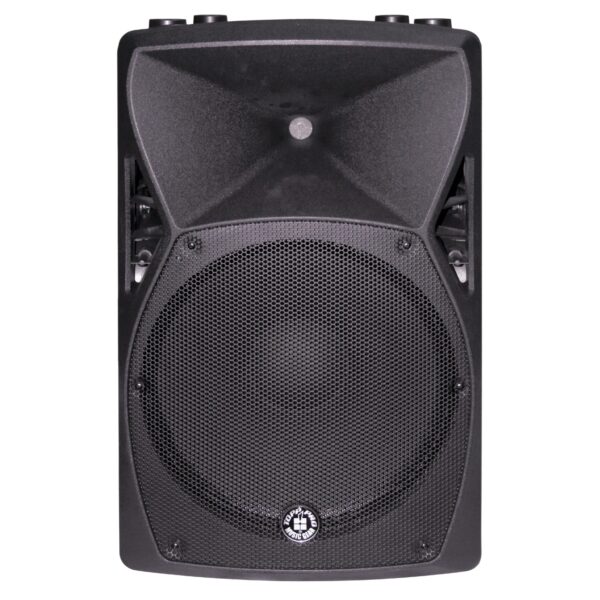

Diffusore attivo 15” 800W
Cassa in Plastica Biamplificata da 415W: 350W (classe D) per le LF + 65W (classe AB) per le HF. Woofer da 15″ + Driver da 1″. SPL di picco 126 dB. 14Kg. Copertura 90° H x 60° V. 3 Maniglie, possibilità di metterla su stativo, predisposizione per appendimento fisso. Controlli sul pannello retro: Controllo del volume, Switch Mic-Line, Selettore del preset d’utilizzo, Pulsante di accensione con Led Verde, Led Rosso del Clip, Ground Lift.
- Program power: 350W + 65W RMS
- Peak power:1600W
- Transducer low: 15” woofer, 2” voice coil
- Transducer high: 1” neodymium driver,1” voice coil
System Type | 2-Way Active Vented Speaker / Bi-Amp. With DSP processor |
Transducer Low | 15″ Woofer, 2″voice coil |
Transducer Driver | 1″ Compression Driver, 1″ Voice Coil |
Horn Coverage H° x V° | 90°H x 60°V |
Frequency Response | 45Hz-20KHz (-6dB) |
Crossover Frequency | 1.6KHz – DSP Processor |
Max SPL | 126dB Max. |
AMP Power Output | 400W Continuous (LF-Class D 350W,HF-Class AB 65W), 1600W Peak |
Connector | Line/Mic With Combo & Link With XLR |

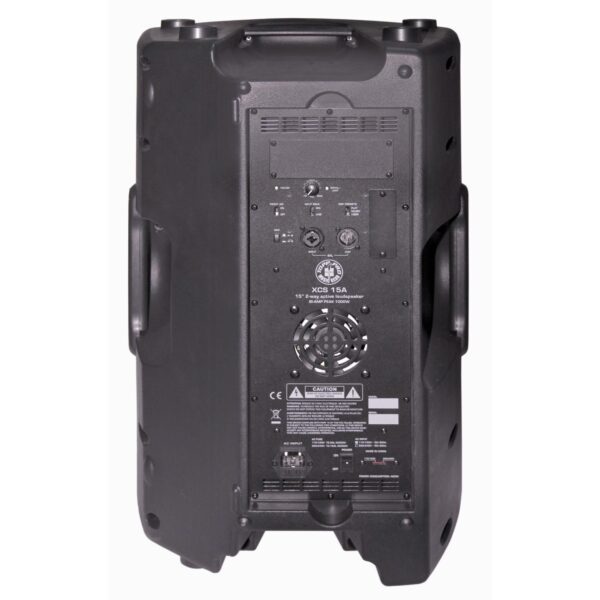

External Controls | Volume Control / Lin & Mic Switch / Preset Switch / Power on with Green LED / Clip Limiter with Red LED / Ground Lift. |
Digital Presets | FLAT -MUSIC-USER |
Electronic Protections | Thermal / Overload / Digital Limiter / Compressor |
Power Supply | 110-120V~50/60Hz or 220V-240V~50/60Hz Switchable |
Enclosure Construction | Plastic cabinet,Trapezoidal & Monitor Shape,Metal Grille, Rubber Feet,3* Handle ( Top and sides) |
Mounting | 36mm standard pole-mount |
Dimensions (HxWxD) | 625x386x366mm |
Net Weight | 14 kg / 30.86Ibs |
